Variation of Ursolic Acid Content in Eight Ocimum Species from Northeastern Brazil

Abstract: Ursolic acid is a very important compound due to its biological potential as an anti-inflammatory, trypanocidal, antirheumatic, antiviral, antioxidant and antitumoral agent. This study presents the HPLC analysis of ursolic acid (UA) content in eight different  Ocimum species:  O. americanum  L.,  O. basilicum L,  O. basilicum var purpurascens Benth,  O. basilicum var.  minimum L,  O. gratissimum L,  O. micranthum Willd,  O. selloi Benth. and  O. tenuiflorum L. grown in Northeastern Brazil. In these Ocimum species, UA was detected in different yields, with O.  tenuiflorum showing the highest content (2.02%). This yield is very significant when compared with other sources of UA.

Keywords: Labiatae; Ursolic acid; Ocimum; HPLC

Introduction

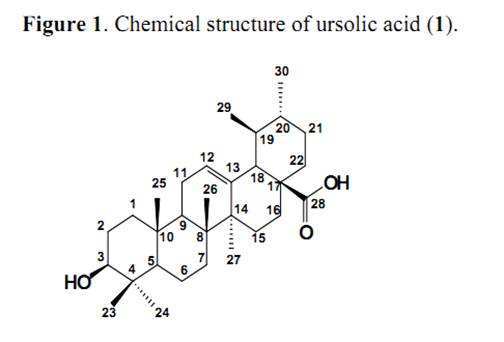

 Ursolic acid (3β-hydroxy-urs-12-en-28-oic acid) is an ursane type triterpene (Figure 1) found in all parts of plants, but mainly in leaves and presenting several important biological activities. These include anti-inflammatory, antioxidant and anti-tumoral properties, being effective in reducing the growth of a variety  of cancer cell lines in vitro [1-5]. The anti-inflammatory activity in  Salvia officinalis L. leaves was attributed to ursolic acid and this compound showed activity two times greater than indomethacin. Topical application of 10 μmol of UA for 20 weeks inhibited 78% of skin tumors [3, 6]. Other relevant activities such trypanocidal, antirheumatic and antiviral properties are attributed to the presence of UA in many plants [7].

Ocimum  is one of the most important genus of the Lamiaceae family, due to the extensive use of many of its species as economically important medicinal and culinary plants. Ursolic acid was previously identified in only two species of  Ocimum:  O. basilicum and  O. tenuiflorum [8, 9]. According to ethnobotanical information people from Northeastern Brazil have been using infusions of Ocimum species for ritualistic aromatic baths, and as a tea for treating gastro-intestinal problems and also for seasoning special foods [10]. This study presents the variation of ursolic acid content in eight species of the genus  Ocimum:  O. americanum,  O. basilicum,  O. basilicum var  purpurascens,  O. basilicum var. minimum, O. gratissimum, O. micranthum, O. selloi and O. tenuiflorum grown in the Northeast of Brazil, as determined by HPLC analysis

Results and Discussion

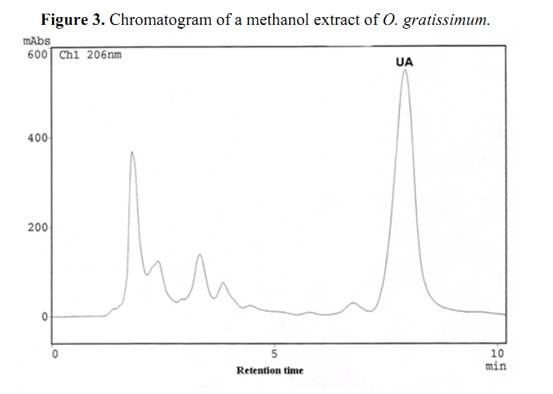

Commercially available ursolic acid is extracted from  Rosmarinus officinalis leaves native to Southern Europe with a yield of 1.5% (by wt.) [11]. High amounts of this triterpenoid compound had also been detected in Plectranthus and Salvia species [6, 12]. The percentage yields of UA in dried leaves of Ocimum species from Northeast of Brazil was evaluated by HPLC-PDA, enabling the determination of retention time (Rt) and UV-Vis spectra. The UA in the extracts was compared against an UA standard. The identity was established by overlay of the absorption spectra of UA (in each example extract) with the UA standard (Figure 2). A chromatogram of O. gratissimum is shown in Figure 3, where the retention time (Rt) of UA was 7.92 min. Calibration graphs for UA wereconstructed in the 3.60 – 72.00 μg/mL range. The regression equation of this curve and its coefficients of determination (R2) were calculated as follows: Y=1.3050E+06X-1.5050E+04 (R2=0.9999); limit of quantification 0.1 μg/mL; limit of detection 0.04 μg/mL; relative standard deviations (RSD) less then 2.0 %. The eight differents sample solutions were  analyzed in the same manner, the peaks were identified by comparison of the retention time corresponding to authentic UA purified from  O. gratissimum. Regarding the extraction efficiency, repetition of the work-up three times was deemed sufficient, since it allowed over 98,00 % extraction of the UA.

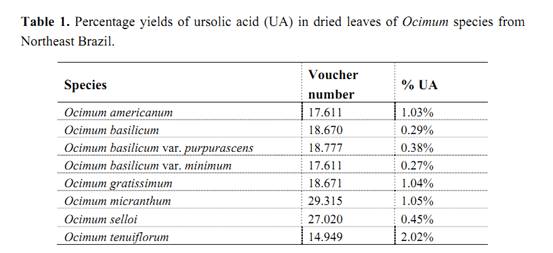

In these Ocimum species, UA was detected in different yields (Table 1). It was found to be less in O. basilicum var. minimum (0.27%) and a highest content in O. tenuiflorum (2.02%). This last result isvery significant when compared with other sources of UA and  O. tenuiflorum constitutes  a new potential source of this important compound.

Experimental

General

HPLC analysis was performed on a Shimadzu LC-10AD pump system equipped with a Shimadzu SPD-M10A photodiode array detector with the detection wavelength set at 206 nm. Melting points were determined using a Microquímica MQAPF-301 melting point apparatus and NMR spectra were recorded on a Bruker DRX 500 [500 MHz (1H) and 125 MHz (13C)] spectrometer. Chemical shifts were recorded in (ppm) relative  to residual solvent (2.49 ppm for 1H-NMR and 39.5 ppm for 13C-NMR). Multiple-pulse experiments (COSY, HMQC and HMBC) were performed using the standard Bruker programs.

Plant material

Leaves of the eight Ocimum species were collected in April 2005 from the Francisco José de Abreu Matos Medicinal and Aromatic Plants Garden of  the Federal University of Ceará (UFC). Voucher specimens were deposited in the Prisco Bezerra Herbarium of the UFC under numbers presented in Table 1.

Extraction and Purification

The air-dried leaves of O. gratissimum  (4.1 kg) were extracted with  ethanol and the solvent was removed under reduced pressure given a solid which was submitted to a chromatographic silica gel column, sequentially eluted with hexane, dichloromethane, ethyl acetate and methanol. The ethyl acetate fraction was chromatographed on a silica gel column to yield ursolic acid (35.2 mg) which was identified by melting point and 1H- and 13C-NMR spectroscopy including a 2D sequence, comparing the UA assignments with literature data [13]. Quantification of UA in the Ocimum species was carried out by HPLC: leaves (5 g) were dried using a microwave oven for nine minutes (three times) then theywere powdered and extracted with methanol (125 mL) using a Soxhlet apparatus for three hours. Methanol extracts were concentrated and the extracts were diluted with methanol to 10 mL. The afforded solution was filtered through a 0.45 μm syringe filter prior to HPLC use.

Ursolic acid (3β-hydroxy-urs-12-en-28-oic acid) (1): White powder, 1H-NMR (DMSO-d6) ppm: 5.14 (1H, dd, J = 13.7; 3.5 Hz; H-12); 3.01 (1H, dd, J = 5.2; 9.5 Hz, H-3); 2.12 (1H, d; J = 11.1 Hz, H-18); 1.92 (2H, dd, J = 13.7; 3.5 Hz, H-11); 1.53 (2H, m, H-16); 1.58 (1H, s, H-9); 1.56 (2H, m, H-1); 1.54 (2H, m, H-22); 1.52 (1H, m, H-20); 1.47 (1H, m, H-6a); 1.43 (2H, m, H-2); 1.31 (1H, m, H-19); 1.29 (1H, m, H-6b); 1.29 (2H, m, H-21); 1.27 (2H, m, H-7); 1.05 (3H, s, H-27); 1.01 (2H, m, H-15); 0.92 (3H, d, J = 6.8 Hz, H-30), 0.90 (3H, s, H-23); 0.87 (3H, s, H-25); 0.82 (3H, d, J = 5.9 Hz, H-29); 0.69 (3H, s, H-26), 0.68 (3H, s, H-24), 0.66 (1H, s, H-5); 13C-NMR (DMSO-d6) ppm: 178.23 (C-28); 138.18 (C-13); 124.54 (C-12); 76.82 (C-3); 54.77 (C-5); 52.37 (C-18); 47.00 (C-9); 46.81 (C-16); 41.62 (C-14); 39.09 (C-8); 38.48 (C-20); 38.42 (C-19); 38.35 (C-4); 38.22 (C-1); 36.51 (C-10); 36.29 (C-22); 32.69 (C-15); 30.77 (C-7); 28.23 (C-23); 27.52 (C-21); 26.79 (C-2); 23.80 (C-11); 23.24 (C-27); 22.82 (C-16); 21.10 (C-30); 17.97 (C-6); 16.97 (C-29); 16.90 (C-24); 16.03 (C-25); 15.18 (C-26).

Chromatographis analysis

HPLC was performed using a reversed-phase column (Shimpack CLC-ODS (M) 4.6 mm x 15 cm – particle size 5  μm) eluted at a rate of 0.5 mL/min with an A:B solvent system (A-acetonitrile; B- 1.25% H3PO4  aqueous; A:B = 86:14 (v/v), with a detection wavelength set at 206 nm and 20  μL injection [14]. To prepare UA standard solution, this compound (7.8 mg) was dissolved in methanol (10 mL) for analysis. Standard solutions were injected (2, 4, 6, 8, 10, and 20 μL respectively) and run for calibration curves. To test  plant leaves (5,000 g),  appropriate amounts of UA were added to approximately double the contents of this compound  in treated materials. The follow-up extractions and HPLC analysis were accomplished in the same manner. The recovery was determined as follows: recovery (%) = (A - B) / C x 100% where, A is the amount of detections, B is the amount of sample without added standard, C is the added amount of the standard. The relative standard deviations (RSD) of recoveries of the UA was 2.1 (n= 5; mean = 98.0).

Acknowledgements

The authors are grateful to CNPq, CAPES and  FUNCAP for financial  support and research fellowships (CNPq); to CENAUREMN / UFC for providing the NMR spectra; and to Professor A. G. Fernandes for the plant identification.

References

1. Harmand, P.O.; Duval, R.; Liagre, B.; Jayat-Vignoles, C.; Beneytout, J.L.; Delage, C.; Simonb, A.; Ursolic acid induces apoptosis through caspase-3 activation and cell cycle arrest in HaCat cells. Int. J. Oncol. 2003, 23, 105-112.

2. Saeidnia, S.; Gohari, A.R.; Uchiyama, N.; Ito, M.; Honda, G.; Kiuchi, F.; Trypanocidalterpenoids from Dracocephalum kotschyi. Chem. Pharm. Bull. 2004, 52, 1249-1250.

3. Huang, M.T.; Ho, C.T.; Wang, Z.Y.; Ferraro, T.; Lou, Y.R.; Stauber, K.; Ma, W.; Georgiadis, C.; Laskin, J.D.; Conney, A.H.; Inhibition of skin tumorigenesis by rosemary and its constituents carnosol and ursolic acid. Cancer Res. 1994, 54, 701-708.

4. Liu, J.; Oleanolic acid and ursolic acid: Research perspectives. J. Ethnopharm. 2005, 100, 92–94.

5. Dacheng, R.; Rongjun, Z.; Andrés, F.; González, B.; Laura, A.B.; Gary, R.E.; Mark, E.; Thomas, P.K.W.; Differential Gene Expression for Investigation of Escherichia coli Biofilm Inhibition by Plant Extract Ursolic Acid. Appl. Environ. Microbiol. 2005, 71, 4022-4034.

6. Zupancic, A.; Topical anti-inflammatory activity of Salvia officinalis L. leaves: the relevance of ursolic acid. J. Ethnopharm. 2001, 75, 125-132.

7. Abe, F.; Yamauchi, T.; Nagao, T.; Kinjo, J.; Okabe, H.; Higo, H.; Akahane, H.; Ursolic acid as a trypanocidal constituent in rosemary. Biol. Pharm. Bull. 2002, 25, 1485-1487.

8. Anandjiwala, S.; Kalola, J.; Rajani, M.;  Quantification of eugenol, luteolin, ursolic acid, and oleanolic acid in black (Krishna tulasi) and green (Sri tulasi) varieties of Ocimum sanctum Linn. using high-performance thin-layer chromatography. J. AOAC Intern. 2006, 89, 1467-1474.

9 Chiang, L. C.; Ng, L. T.; Cheng, P. W.; Chiang, W.; Lin, C. C.; Antiviral activities of extracts and selected pure constituents of Ocimum basilicum. Clin. Exp. Pharmacol. Physiol. 2005, 32, 811-816.

10. Silva, M.G.V.; Matos, F.J.A.; Machado, M.I.L.; Craveiro, A.A.; Essential oils of  Ocimum basilicum L., O.  basilicum var minimum and  Ocimum basilicum var purpurascens grown in Northeastern Brazil. Flavour Frag. J. 2003, 18, 13-14.

11. Razboršek,M. I.; Vončina, D. B.; Doleček, V.; Vončina, E.; Determination of Oleanolic, Betulinic and Ursolic Acid in Lamiaceae and Mass Spectral Fragmentation of Their Trimethylsilylated Derivatives. Chromatographia 2008, 67, 433-440.

12. Abdel-Mogib, M.; Albar, H.A.; Batterjee, S.M.; Chemistry of the Genus Plectranthus. Molecules 2002, 7, 271-301.

13. Alves, J. S.; Castra, J. C. M.; Freire, M. O.; Cunha, E. V.; Silva, M. S.; Complete assignment of the 1H and 13C NMR Spectra of four Triterpenes of the Ursane, Artane, Lupane and Friedelane Groups. Magn. Reson. Chem. 2000, 38, 201-206.

14. Chen, J. H.; Xia, Z. H.; Tan, R. X.; High-performance liquid chromatographic analysis of bioactive triterpenes in Perilla frutescens. J. Pharm. Biomed. Anal. 2003, 32, 1175-1179.
